Concept for Next Generation VLBI
Jouko Ritakari, Metsähovi Radio Observatory.
October 31, 2000
Because of popular demand I will write down my thoughts on the future of VLBI technology, first presented in the EVN TOG meeting in Torun, Poland on 20th of October, 2000.
This document describes the concepts needed in the design of the next-generation VLBI system. In some cases I had to go to some detail to prove these things are feasible with the technology we can buy off-the–shelf now. If these are too tedious, please jump over the explanations and concentrate on the underlying philosophy.
I wrote this document from the VLBI point of view, but many of the concepts are valid also in connected arrays.
A great deal of the complexity and high cost of VLBI systems is caused by old and unreliable recorder technology, which is not very well suited to the demands of VLBI. Maximum data rate for one track is 9 Mbit/s, so VLBI data needs to be divided into small 9 Mbit/s data streams.
Another cause for complexity is the need to shuffle these datastreams to the available tracks in the recording terminal and from the recorder tracks to the correlator channels in the playback terminal.
Both of these problems can be solved by using commercial-off-the-shelf (COTS) technology that is available now.
The most important part of the next generation VLBI system are the digital baseband converters. Clearly we need baseband converters that are affordable, easy to manufacture and, what is most important, robust: they either work or are totally broken.
The concept has been discussed in the ALMA Memo #305: "A Digital BBC for the ALMA Interferometer", MMA Memo #204: "Digital Filtering in the MMA" and MMA Memo #248: "Computer Simulation of a FIR Filter for the MMA".
The digital baseband converters will produce sampled data output using 100 Mbit/s Ethernet. The BBCs will send the data using the UDP protocol (a protocol widely used in Internet). The UDP packets will contain the unique address of the baseband converter in source address field and the address of the correlator channel in destination address field, as well as the time when the data was recorded. All further routing and processing will be based on these fields.
Formatting and sending of the UDP packets is done in hardware using the timing from hydrogen maser clock. Of course, the fast Ethernet controller should be part of the BBC ASIC. Commercial VHDL implementations for 100 Mbit/s and gigabit Ethernet controllers are available. A baseband converter will be controlled by a simple and low-cost computer with embedded Linux.
How many BBCs are needed is to be determined. Because the characteristics of the recording subsystem are hidden from the BBCs and the correlator, we can use a few wideband BBCs or many narrowband BBCs. Anyway, the BBCs should be low-cost modules that can be added to the system at will.
Gigabit Ethernet switches are commercially available. No modifications or programming are needed. The switches work at wire speed and are non-blocking. Data is switched to recorder units based on the destination address, the recorder units don’t receive frames that are going to other units.
If needed, the gigabit switch will multiplex data from several BBCs to one recorder unit or fan-out the data from one high-speed BBC to several recorder units. If fan-out is needed, the digital BBC must modify the destination field of the consecutive UDP packets so that the packets are switched to several recorder units.
The function of the record/playback units is to hide the characteristics of the tape recorders, hard disks etc. from the rest of the system. If the recorder technology changes or the SCSI interface dies out, recorder banks can be changed without affecting the rest of the system. Even different recorder types may be used at the same time with no modifications in the system.
Recorder and playback units are based on COTS tape drives and embedded Linux computers. Recorder units have extremely limited functionality, the basic function is to receive data in UDP packets from Ethernet and store it to tape until the tape runs out. Playback units also have extremely limited functionality, the basic function is to read data from tape and send it to correlator when the correlator control requests it. The correlator control usually requests data frames that start at a certain time using a broadcast message. All playback units that have data send it to correlator channels.

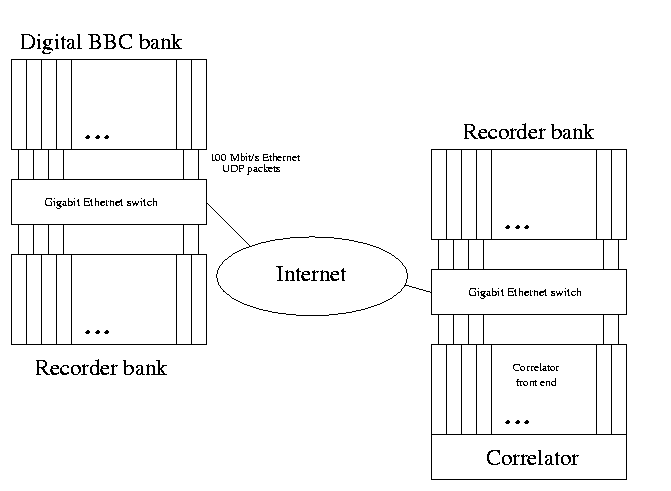

Optionally the recorder/playback units can contain a hard disk. This configuration is useful in near real time VLBI, where data can be stored and sent forward via Internet in the nighttime, when there is abundant bandwith. Hard disks may be useful in the playback units, because data can be transferred from the relatively slow tape storage to high-speed disk storage.
The switches are commercially available, work at wire speed and are non-blocking. The routing of data from playback units to correlator channels will be done automatically based on the destination address of the UDP packet.
At this moment the commercial gigabit Ethernet switches have maximum non-blocking bandwidth of 256 Gbps, enough for any playback system. The technology continues to be developed, the next generation switches will have 10 Gbit/s Ethernet ports.
Correlator front-end is built using general purpose computers with embedded Linux. One computer is needed for each correlator channel.
When data is correlated, all data cassettes from the time to be correlated are placed in playback unit banks. The correlator control then sends a broadcast command to the playback units, requesting the units to send data from the first timeslot to the correlator front-ends.
The playback units then send the data, it is routed according to the address recorded in the data and arrives at the front-ends via gigabit Ethernet links. The front-ends then feed the data to correlators. This process is repeated until the end of the data on the tapes.
The same design can be used in connected arrays, the only change is that tape record/playback units are not needed. Digital BBC outputs are connected to the correlator using 100 Mbit/s or Gigabit Ethernet. The same Ethernet is used to control the radio telescopes, thus eliminating the need for a separate control network.
The ultimate example of connected array is of course the ALMA interferometer that will have 64 antennas with data streams of 8 Gbit/s per antenna. Even these speeds are well within the capabilities of currently available COTS Gigabit Ethernet switches. Some planning will be necessary, because the system will need several Gigabit Ethernet switches.
At this moment the maximum capacity of a single Gigabit Ethernet switch is 256 Gbps and the maximum rate in one fiber is 10 Gbps (using WDM technology). When ALMA becomes operational, 10 Gigabit Ethernet technology is widely used and inexpensive.
At this moment (October 2000) high-end tape drives have 200 MB capacity. Street price for top-of-the-line Seagate 100/200GB LTO drives is 5953 dollars. The street price of the two-year-old technology, the 35/70 GB AIT drives has dropped to 1750 dollars.
We can deduct four things from these facts:
Tape drive technology has been discussed in greater detail in the Haystack memo "Concept for an Affordable High-Data-Rate VLBI Recording and Playback System".
Commercially available gigabit Ethernet switches have enough bandwidth to be used for both VLBI recording terminals and correlators.
Several companies manufacture gigabit Ethernet switches, for example Extreme networks (www.extremenetworks.com), Juniper (www.juniper.net) and Hewlett-Packard (www.hp.com). Some examples of the products available today:
Extreme Networks BlackDiamond 6816 (suitable for correlators):
Extreme Networks Summit48
Extreme Networks Summit24
Gigabit and 10 Gigabit trunk lines
These products are only examples of what is available today. These products are relatively inexpensive because of the heavy competition on the gigabit ethernet switch market.
The tape record / playback units and the digital BBCs are controlled by relatively simple, low-cost computers with embedded Linux.One (but not only) possibility for a controller is the Axis ETRAX 100 processor that is normally used in printer servers, storage servers etc.
One example of the capabilities of the processor is the developer board that costs 299 dollars. Axis also promises to sell the processors only (in quantities). Axis has apparently another type of processor board that supports SCSI and EIDE devices.
Axis Developer Board - Hardware
More info about the ETRAX 100 processor and the developer board can be found in www.axis.com and developer.axis.com
